Mini PC Core i7 9700K up to - RAM 16 GB - SSD 512 GB, HDD 1 TB - Quadro P4000 - Gigabit Ethernet - Win 10 Home Advanced - monitor: none - midnight blue
Main Specifications | |
---|---|
Product Description | ASUS ProArt PA90 M7021ZN - mini PC Core i7 9700K - 16 GB - SSD 512 GB, HDD 1 TB |
Type | Personal computer - mini PC |
Processor | Intel Core i7 (9th Gen) 9700K (8-core) |
RAM | 16 GB (installed) / 64 GB (max) - DDR4 SDRAM |
Storage Controller | SATA (SATA 6Gb/s) |
Hard Drive | SSD 512 GB - SATA - M.2 |
Hard Drive (2nd) | HDD 1 TB - SATA |
Optical Storage | No optical drive |
Graphics Controller | NVIDIA Quadro P4000 |
Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Bluetooth 5.0 |
OS Provided | Windows 10 Home Advanced |
Color | Midnight blue |
Dimensions (WxDxH) | 6.9 in x 6.9 in x 1.4 in |
Weight | 12.79 lbs |
Environmental Standards | ENERGY STAR Qualified |
General | |
Type | Personal computer |
Product Form Factor | Mini PC |
Built-in Devices | Liquid cooling system |
Color | Midnight blue |
Expansion / Connectivity | |
Bays | 1 (total) / 0 (free) x internal 2.5" |
Slots | 2 (total) / 1 (free) x M.2 Card |
Interfaces | 4 x DisplayPort ¦ 4 x USB 3.1 Gen 2 (2 front, 2 rear) ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x headphones (1 in front) ¦ 1 x microphone (1 in front) ¦ 2 x Thunderbolt 3/USB-C 3.1 Gen 2 ¦ 1 x audio line-out |
Miscellaneous | |

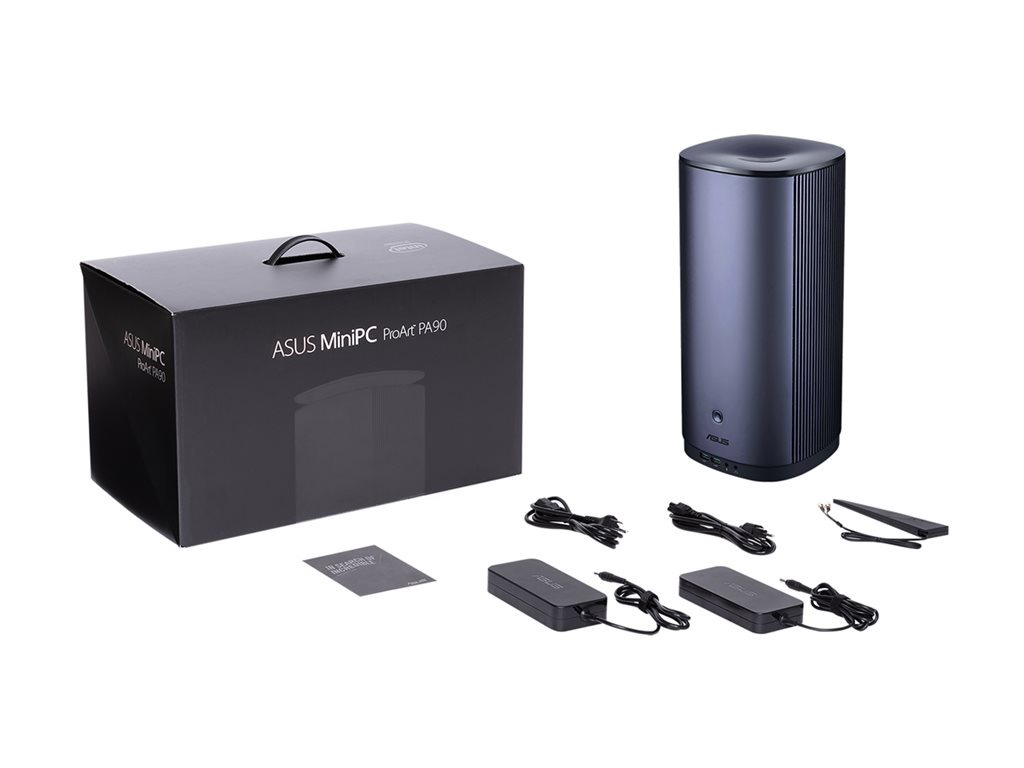

Included Accessories | 2 x power adapters (180W + 230W) |
Compliant Standards | UL, VCCI, C-Tick, BSMI, CB, CCC, FCC |
RAM | |
Installed Size | 16 GB (installed) / 64 GB (max) |
Technology | DDR4 SDRAM |
Form Factor | SO-DIMM 260-pin |
Slots | 4 (total) / 2 (empty) |
Configuration Features | 2 x 8 GB |
Networking | |
Wireless LAN Supported | Yes |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
Compliant Standards | Wi-Fi CERTIFIED |
Power | |
Device Type | Power adapter |
Environmental Parameters | |
Sound Emission | 25.5 dB |
Storage Controller | |
Type | 1 x SATA |
Controller Interface Type | SATA 6Gb/s |
Optical Storage | |
Type | No optical drive |
Monitor | |
Monitor Type | None. |
Graphics Controller | |
Graphics Processor | NVIDIA Quadro P4000 |
Video Interfaces | DisplayPort |
Operating System / Software | |
OS Provided | Windows 10 Home Advanced |
Hard Drive | |
Type | SSD - M.2 |
Capacity | 1 x 512 GB |
Interface Type | SATA |
Dimensions & Weight | |
Width | 6.9 in |
Depth | 6.9 in |
Height | 1.4 in |
Weight | 12.79 lbs |
Hard Drive (2nd) | |
Type | HDD |
Interface Class | Serial ATA |
Capacity | 1 x 1 TB |
Processor / Chipset | |
CPU | Intel Core i7 (9th Gen) 9700K |
Number of Cores | 8-core |
CPU Qty | 1 |
Max CPU Qty | 1 |
Chipset Type | Intel Z390 |
Sustainability Information | |
ENERGY STAR Certified | Yes |
