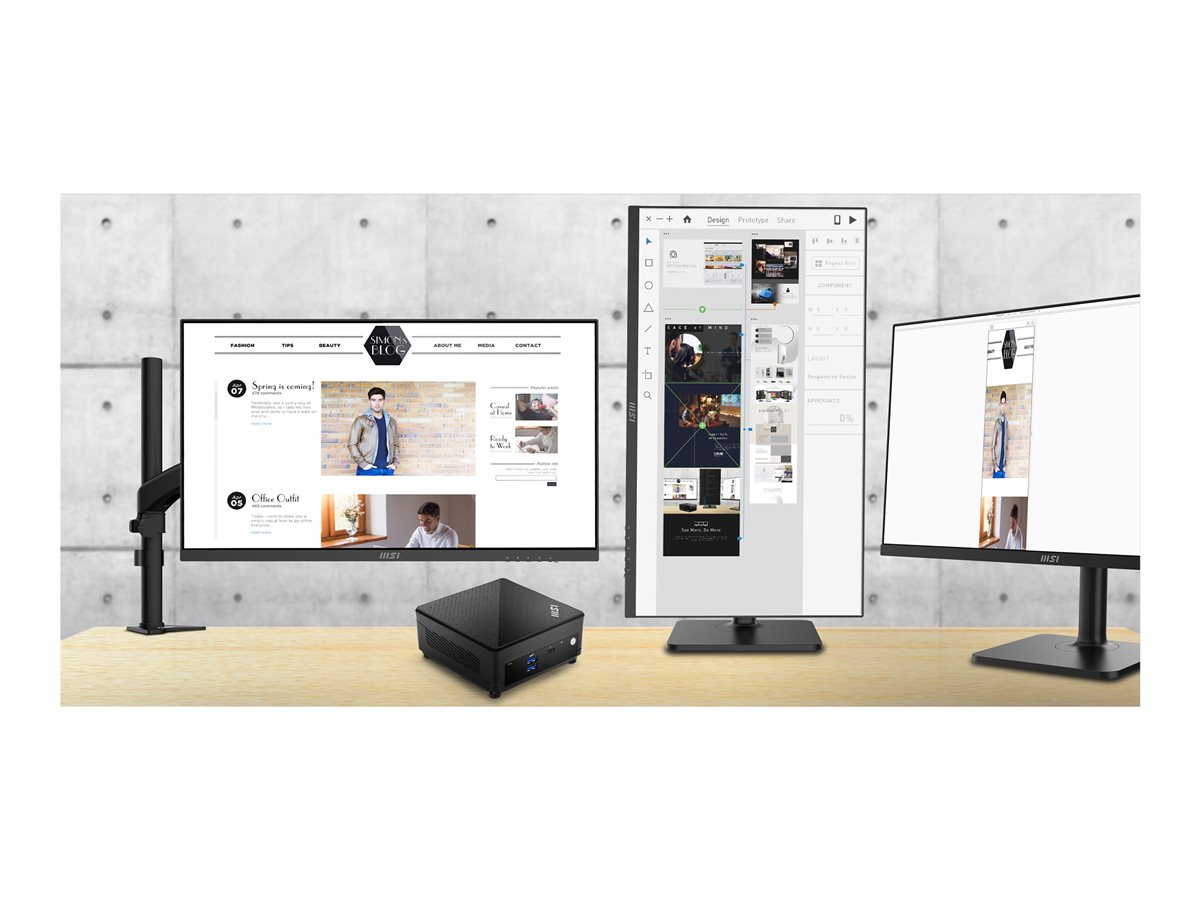

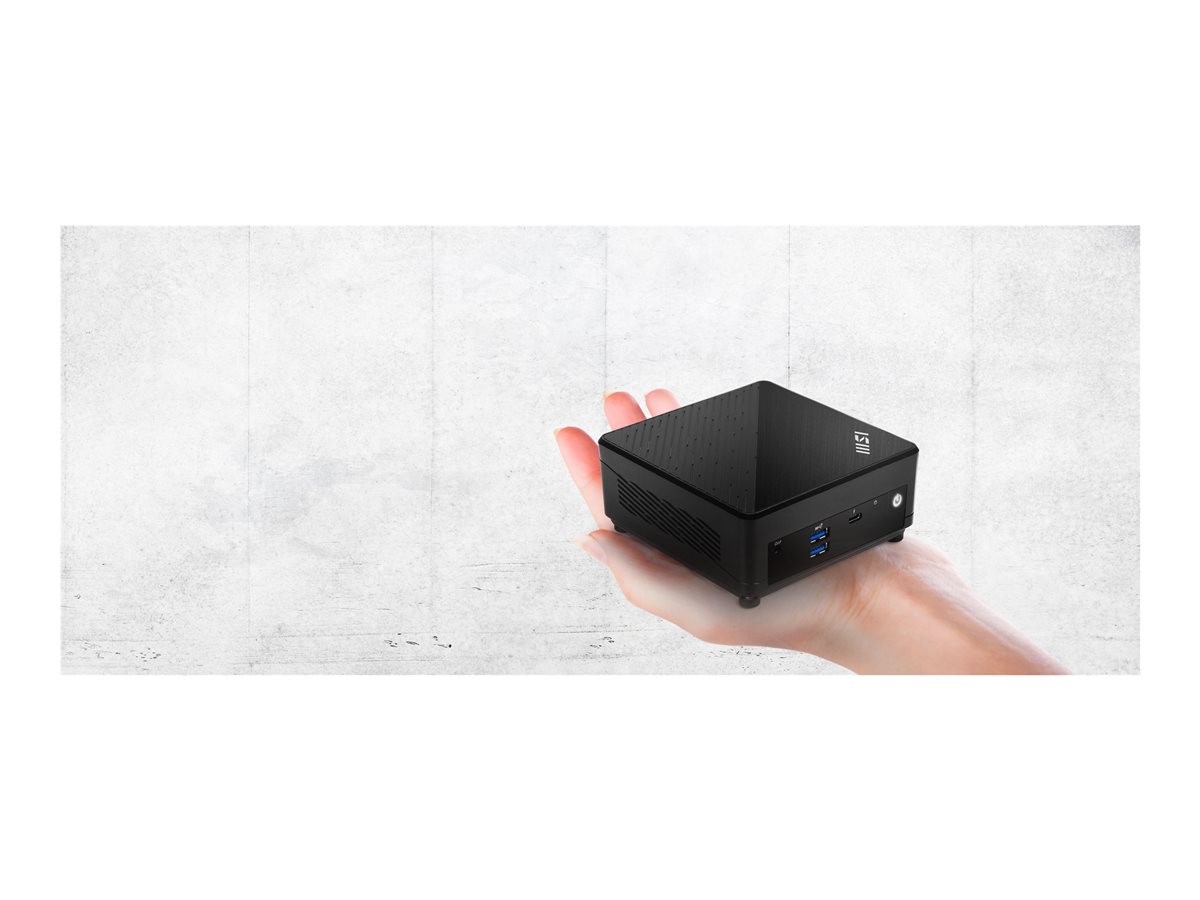

Barebone - mini PC - 1 x Core i7 1255U / up to 4.7 GHz - RAM 0 GB - Intel Iris Xe Graphics - Gigabit Ethernet, Bluetooth, IEEE 802.11ax (Wi-Fi 6E)
Main Specifications | |
---|---|
Product Description | MSI Cubi 5 12M 016BUS - mini PC Core i7 1255U 1.7 GHz - 0 GB - no HDD |
Type | PC barebone - mini PC |
Processor | 1 x Intel Core i7 (12th Gen) 1255U / 1.7 GHz (up to 4.7 GHz, (10-core) |
Processor Main Features | Intel Smart Cache |
Cache Memory | 12 MB |
Cache Per Processor | 12 MB |
RAM | 0 GB (installed) / 64 GB (max) - DDR4 SDRAM |
Storage Controller | SATA |
Hard Drive | No HDD |
Optical Storage | No optical drive |
Graphics Controller | Intel Iris Xe Graphics |
Networking | 1GbE, Bluetooth, 802.11a, 802.11b/g/n, Wi-Fi 5, Wi-Fi 6E |
Power | (50/60 Hz) |
OS Provided | No operating system |
Dimensions (WxDxH) | 4.9 in x 4.9 in x 2.1 in |
Weight | 19.36 oz |
Manufacturer Warranty | Limited warranty - 1 year |
General | |
Type | PC barebone |
Product Form Factor | Mini PC |
Built-in Devices | Air cooling solution |
Expansion / Connectivity | |
Bays | 1 (total) / 1 (free) x internal 2.5" |

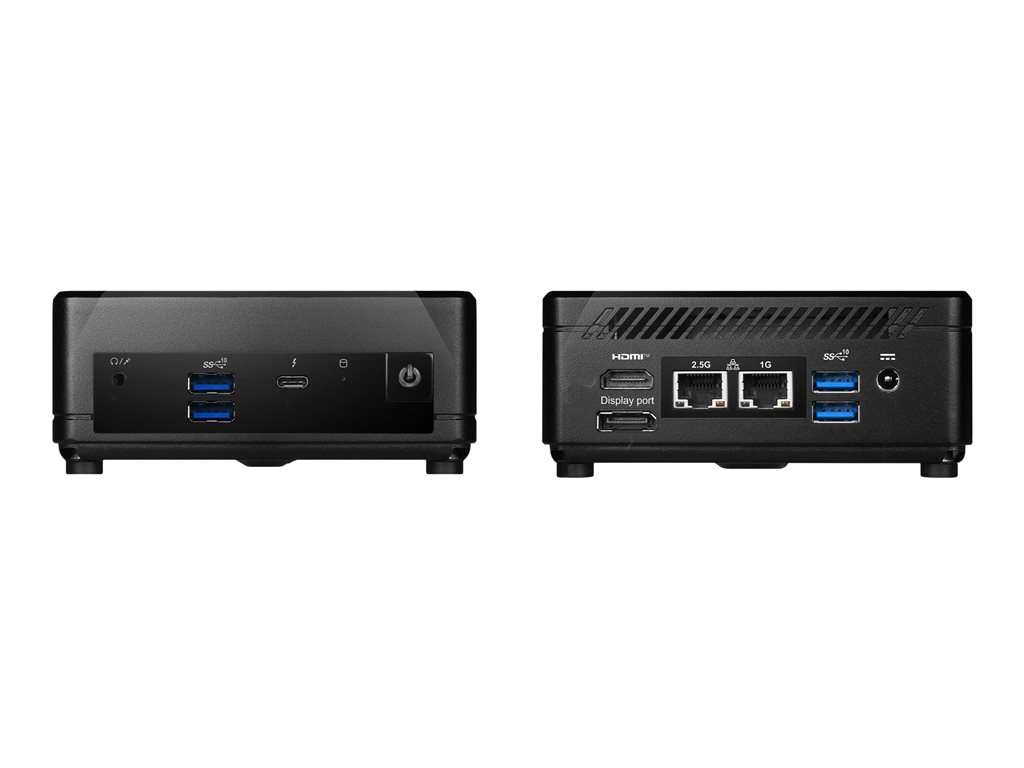

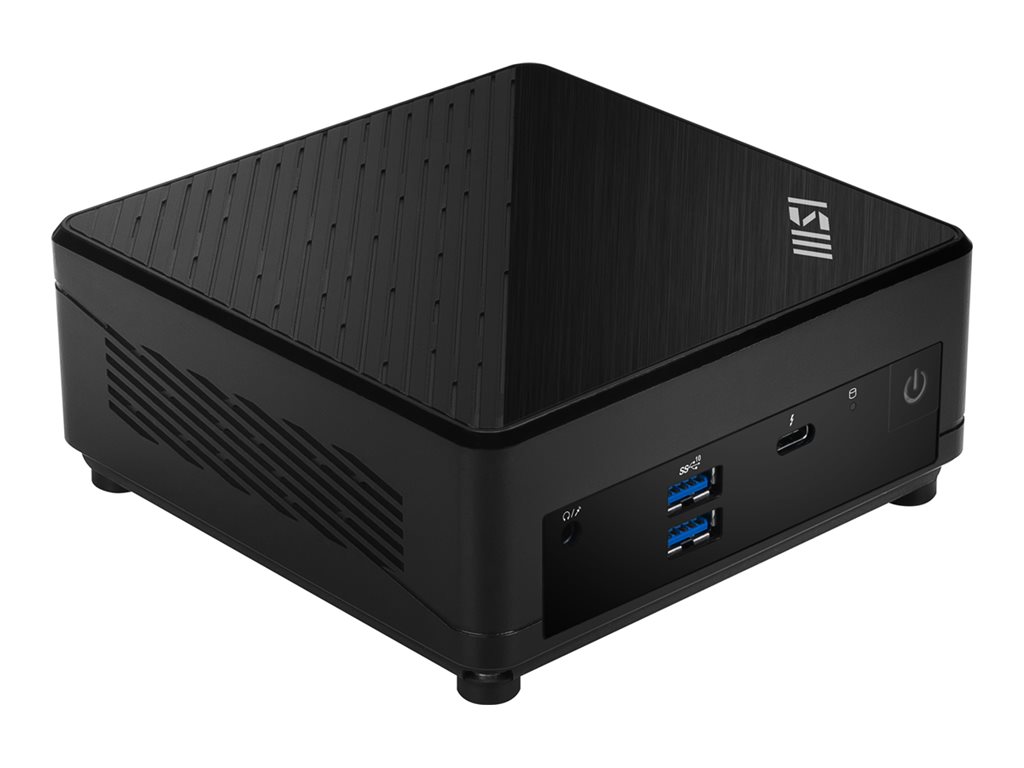

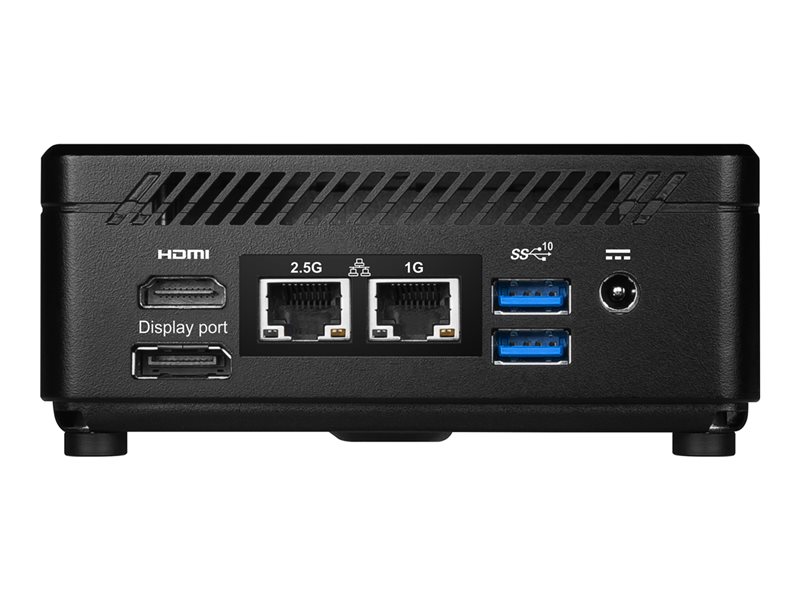

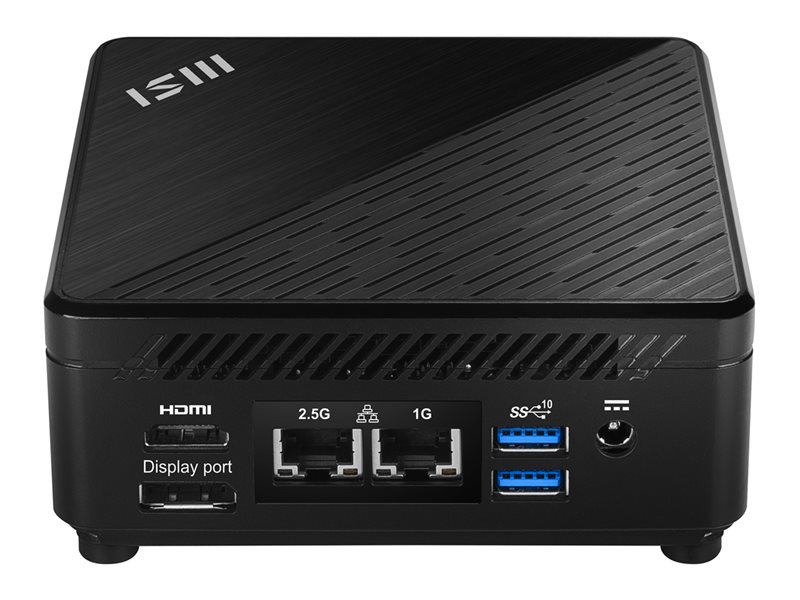

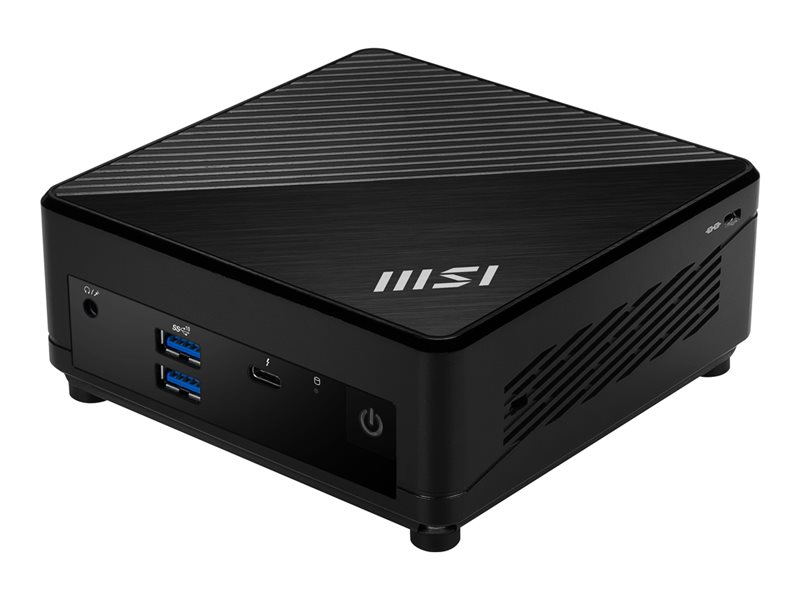

Interfaces | 1 x headphones/microphone (1 in front) ¦ 1 x Thunderbolt 4 (1 front) ¦ 1 x HDMI output (1 rear) ¦ 1 x DisplayPort (1 rear) ¦ 4 x USB 3.2 Gen 2 (2 front, 2 rear) ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x LAN (2.5Gigabit Ethernet) |
Manufacturer Warranty | |
Service & Support | Limited warranty - 1 year |
Miscellaneous | |
Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
Security Slot Type | Kensington security slot |
VESA Mounting Interface | Yes |
RAM | |
Installed Size | 0 GB (installed) / 64 GB (max) |
Technology | DDR4 SDRAM |
Form Factor | SO-DIMM 260-pin |
Slots | 2 (total) / 2 (empty) |
Networking | |
Ethernet Controller | Realtek RTL8125BG-CG, RTL8111H |
Wireless LAN Supported | Yes |
Wireless NIC | Intel Wi-Fi 6E AX 211 |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E) |
Power | |
Device Type | Power adapter |
Voltage Required | AC 100-240 V (50/60 Hz) |
Power Provided | 65 Watt |
Storage Controller | |
Type | 1 x SATA |
Cache Memory | |
Installed Size | 12 MB |
Cache Per Processor | 12 MB |
Optical Storage | |
Type | No optical drive |
Monitor | |
Monitor Type | None. |
Graphics Controller | |
Graphics Processor | Intel Iris Xe Graphics |
Video Interfaces | HDMI, DisplayPort |
Max Monitors Supported | 2 |
Operating System / Software | |
OS Provided | No operating system |
Hard Drive | |
Type | No HDD |
Dimensions & Weight | |
Width | 4.9 in |
Depth | 4.9 in |
Height | 2.1 in |
Weight | 19.36 oz |
Processor / Chipset | |
CPU | Intel Core i7 (12th Gen) 1255U |
Clock Speed | 1.7 GHz (P-core) / 1.2 GHz (E-core) |
Max Turbo Speed | 4.7 GHz (P-core) / 3.5 GHz (E-core) |
Number of Cores | 10-core |
CPU Qty | 1 |
Max CPU Qty | 1 |
Processor Main Features | Intel Smart Cache |
