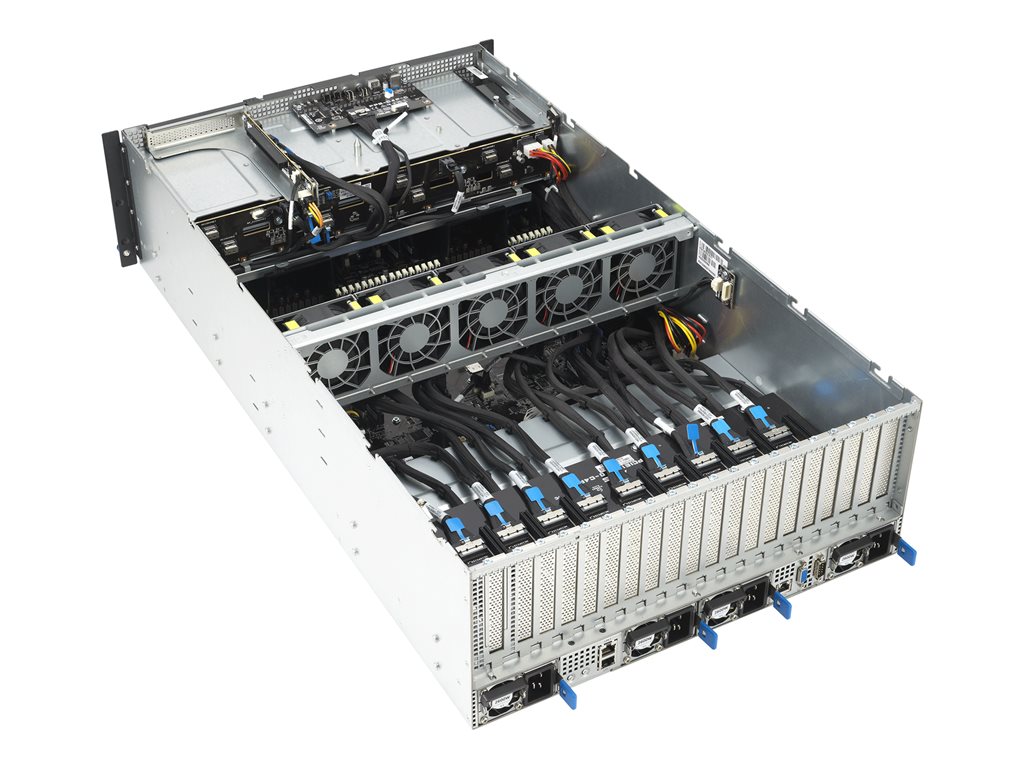

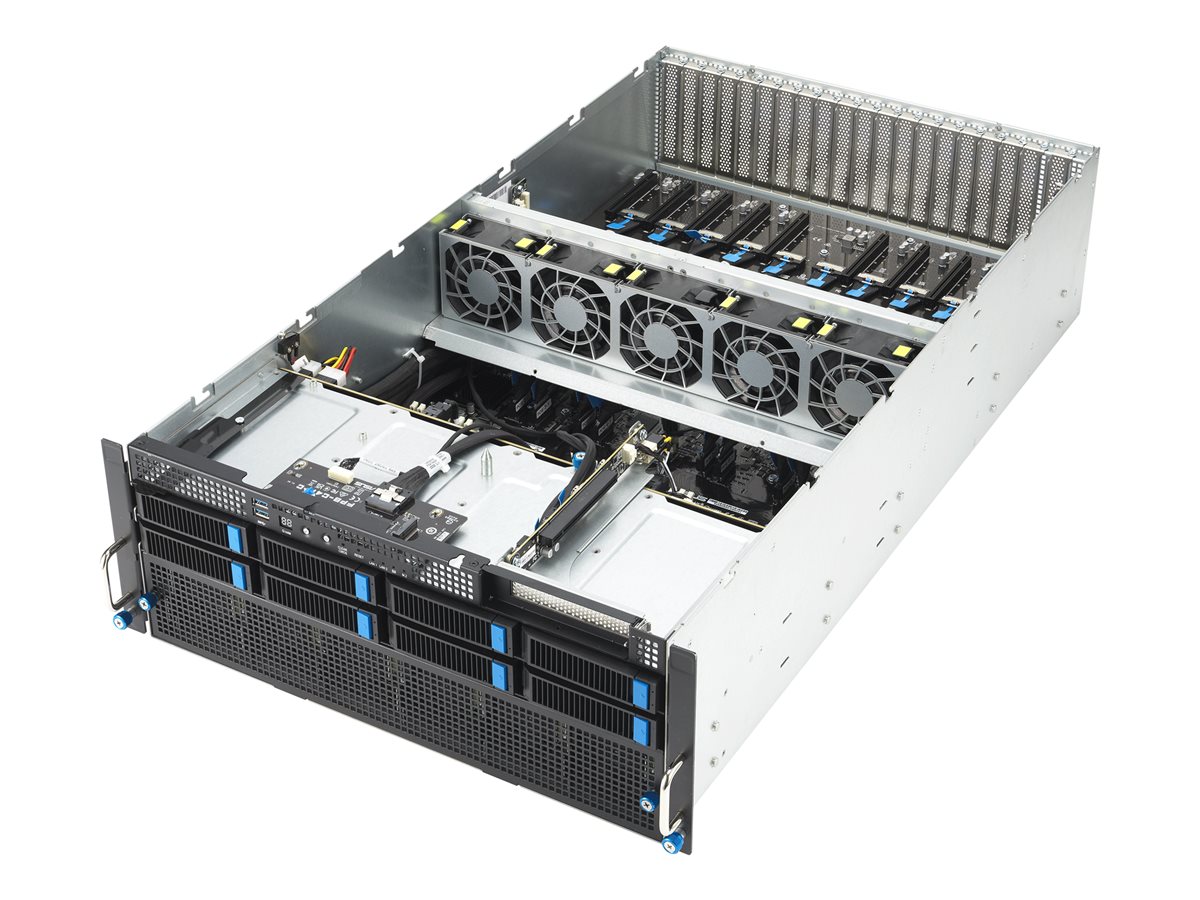

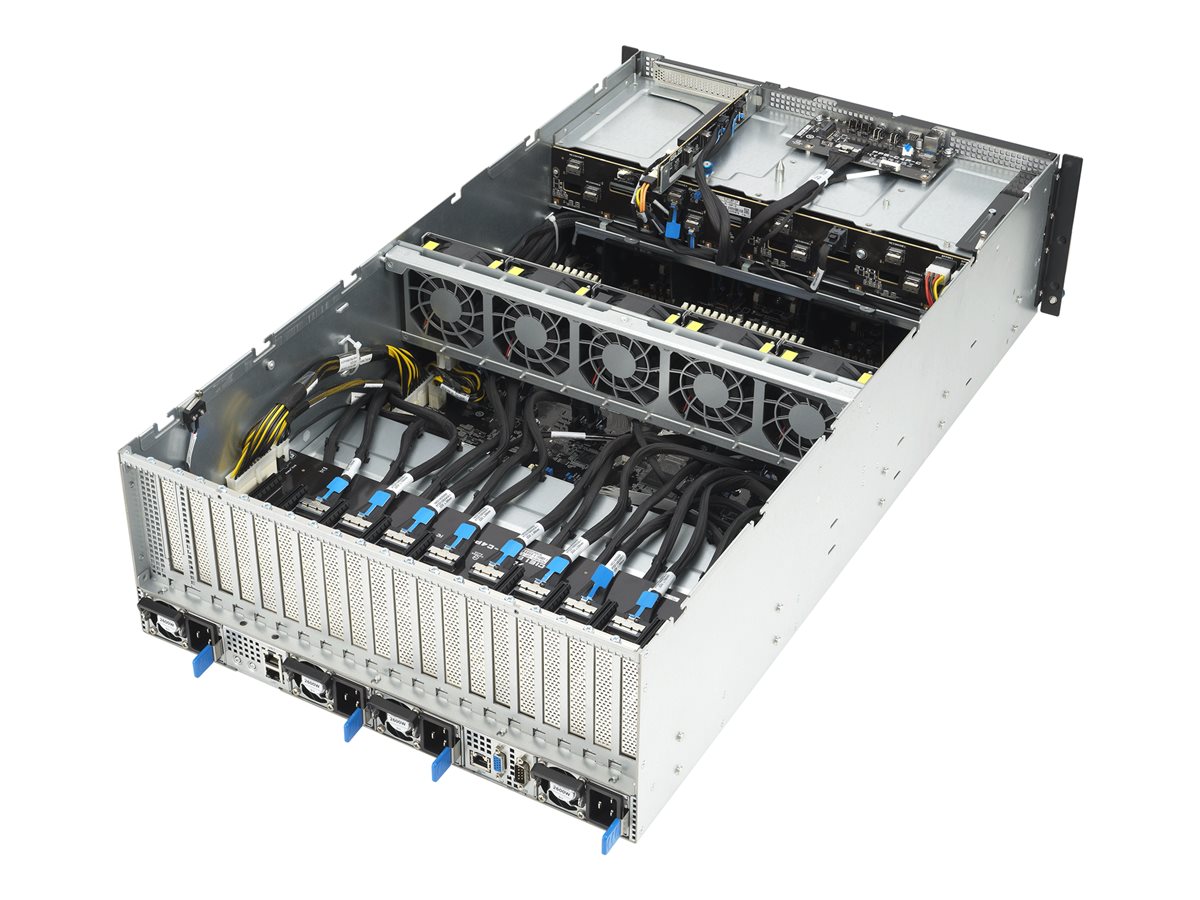

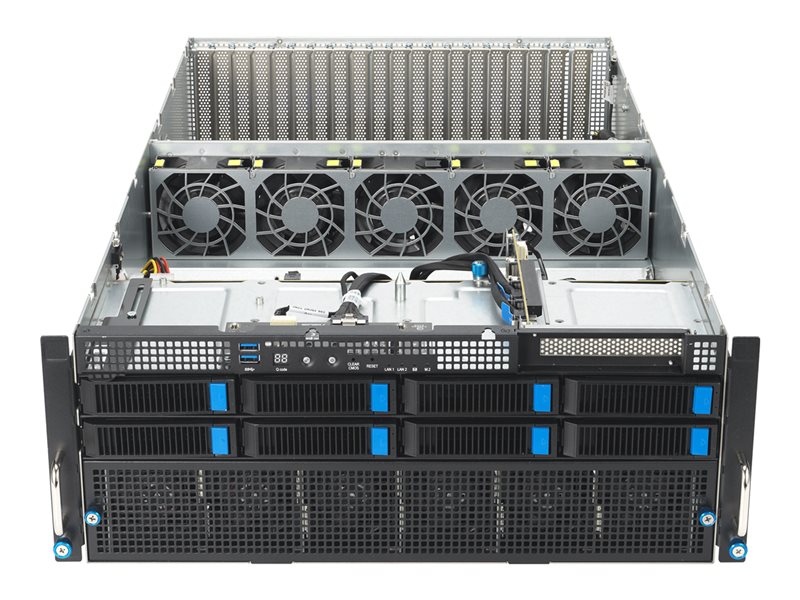

ASUS - ASUS ESC8000-E11-3W10G
Server - rack-mountable 4U - 2-way - 2 x Xeon Silver 4410Y / up to 3.9 GHz - RAM 64 GB - SATA/PCI Express - hot-swap 3.5" bay(s) - SSD 480 GB - 3D Triple-level Cell (TLC) - AST2600 - no OS - monitor: none
ASUS
ESC8000-E11-3W10G
N/A
0197105263079
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | ASUS ESC8000-E11-3W10G - rack-mountable Xeon Silver 4410Y 2 GHz - 64 GB - SSD 480 GB |
| Type | Server - rack-mountable |
| Height (Rack Units) | 4U |
| Server Scalability | 2-way |
| Processor | 2 Xeon Silver 4410Y / 2 GHz (up to 3.9 GHz, (12-core) |
| Cache Memory | 60 MB |
| Cache Per Processor | 30 MB |
| RAM | 64 GB DDR4 SDRAM |
| Storage Controller | SATA; NVMe |
| Server Storage Bays | Hot-swap 3.5" |
| Hard Drive | SSD 480 GB - PCI Express 4.0 x4 - M.2 - 3D Triple-level Cell (TLC) |
| Optical Storage | No optical drive |
| Graphics Controller | ASPEED AST2600 |
| Power | (50 - 60 Hz) |
| Power Redundancy | Yes |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 17.3 in x 31.5 in x 6.9 in |
| Weight | 59.52 lbs |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 4U |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 8 |
| Expansion / Connectivity | |
| Bays | 8 (total) / 8 (free) x hot-swap 2.5" / 3.5" shared |
| Slots | 8 (total) / 8 (free) x PCIe 4.0 x16 - full-length, full-height |
| Interfaces | 2 x USB 3.2 Gen 1 (2 in front) ¦ 1 x management - RJ-45 ¦ 1 x VGA ¦ 1 x serial ¦ 2 x LAN (10Gigabit Ethernet) |
| Miscellaneous | |
| Compliant Standards | BSMI, FCC Class A certified |
| RAM | |
| Installed Size | 64 GB |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 4800 MHz |
| Rated Memory Speed | 4800 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 32 (total) / 28 (empty) |
| Features | Registered, ECC |
| Configuration Features | 4 x 16 GB |
| Networking | |
| Ethernet Controller | Intel X710-AT2 |
| Remote Management Controller | Aspeed AST2600 |
| Power | |
| Device Type | Power supply |
| Power Redundancy | Yes |
| Voltage Required | AC 220 - 240 V (50 - 60 Hz) |
| Power Provided | 3000 Watt |
| 80 PLUS Certification | 80 PLUS Titanium |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Storage Controller | |
| Type | 1 x SATA |
| Channel Qty | 8 |
| Cache Memory | |
| Installed Size | 60 MB |
| Cache Per Processor | 30 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2600 |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| Storage Controller (2nd) | |
| Type | NVMe |
| Channel Qty | 2 |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 480 GB |
| Manufacturer | Micron |
| Interface Type | PCI Express 4.0 x4 |
| Features | 3D Triple-level Cell (TLC) NVM Express (NVMe) |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 31.5 in |
| Height | 6.9 in |
| Weight | 59.52 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 114.64 lbs |
| Processor / Chipset | |
| CPU | Xeon Silver 4410Y |
| Clock Speed | 2 GHz |
| Max Turbo Speed | 3.9 GHz |
| Number of Cores | 12-core |
| CPU Qty | 2 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
